High Quality Steel Sheet Pile

Phone : +86 13616419921

Email : admin@ry-steel.com

Wechat : +86 13616419921

Whatsapp : +86 13616419921

Contact us →

Product Description

Product Name	Steel Sheet Pipe(U section type cold rolled steel sheet pile in different profiles)
Standard	AiSi, ASTM, DIN, GB, JISEN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M
Length	9 12 15 20 m as required Max.24m
Width	400-750mm as required
Thickness	6-25mm
Material	Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect.
Shape	U,Z,L,S,Pan,Flat,hat profiles
Application	Cofferdam /River flood diversion and control/ Water treatment system fence/Flood protection Wall/ Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/ Breakwater/Weir Wall/ Fixed slope/ Baffle wall
Steel grade	SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690
Technique	Cold formed interlock or clutches

Size				Per piece
Specification	Width(mm)	High(mm)	Thick(mm)	Section area(cm2)	Weight(kg/m)
400 x 85	400	85	8.0	45.21	35.5
400 x 100	400	100	10.5	61.18	48.0
400 x 125	400	125	13.0	76.42	60.0
400 x 150	400	150	13.1	74.40	58.4
400 x 170	400	170	15.5	96.99	76.1
600 x 130	600	130	10.3	78.7	61.8
600 x 180	600	180	13.4	103.9	81.6
600 x 210	600	210	18.0	135.3	106.2
750 x 205	750	204	10.0	99.2	77.9
	750	205.5	11.5	109.9	86.3
	750	206	12.0	113.4	89.0

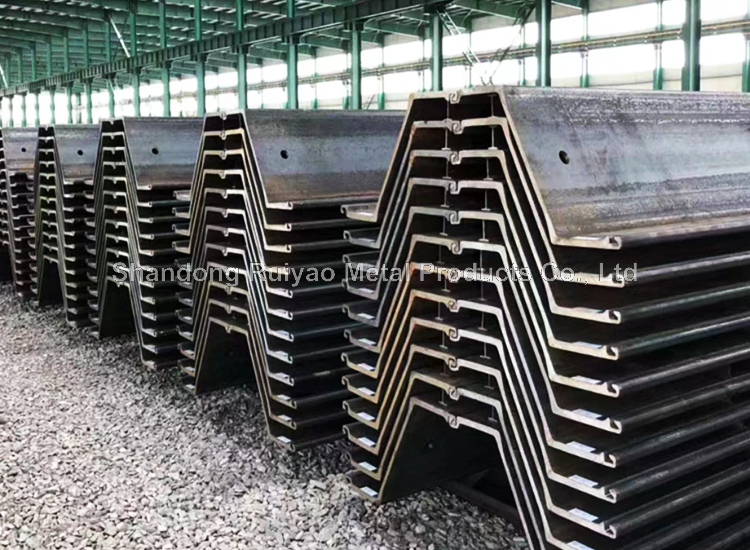

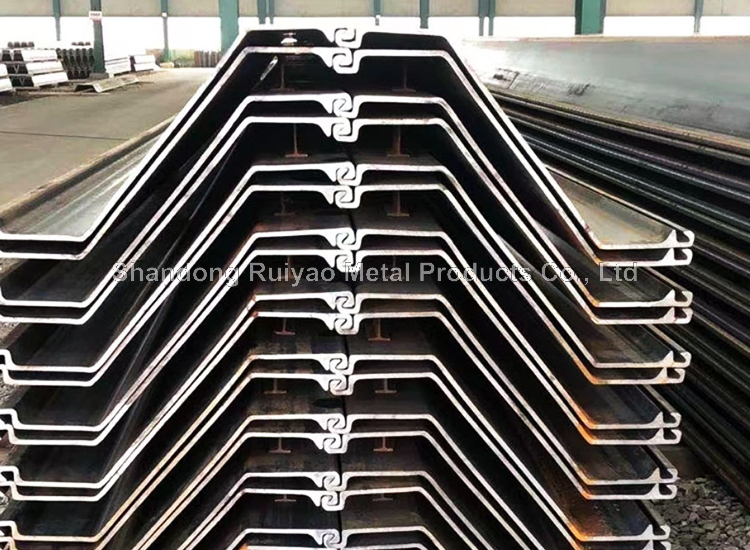

Z type steel sheet piles:

1.Flexible design, a relatively high section modulus and mass ratio.
2.The stiffness of sheet pile wall is increased to reduce the displacement and deformation.
3.Large width, effectively save the time of hoisting and piling.
4.With the increase of section width, the water stop performance is improved.
5.More excellent corrosion resistance.
Z Type, U Type, European Standard Carbon Type II Type IIII En10249 S355jr S355j0 S355j2h Sy295 Sy390 Hot Rolled Interlocking Steel Sheet Pile

Specification	Width(mm)	High(mm)	Thick t(mm)	Thick s(mm)	Weight(kg/m)
SPZ12	700	314	8.5	8.5	67.7
SPZ13	700	315	9.5	9.5	74
SPZ14	700	316	10.5	10.5	80.3
SPZ17	700	420	8.5	8.5	73.1
SPZ18	700	418	9.10	9.10	76.9
SPZ19	700	421	9.5	9.5	80.0
SPZ20	700	421	10.0	10.0	83.5
SPZ24	700	459	11.2	11.2	95.7
SPZ26	700	459	12.3	12.3	103.3
SPZ28	700	461	13.2	13.2	110.0
SPZ36	700	499	15.0	11.2	118.6
SPZ38	700	500	16.0	12.2	126.4
SPZ25	630	426	12.0	11.2	91.5
SPZ48	580	481	19.1	15.1	140.2

U steel sheet pile is most common sheet pile with obvious features such as :high intensity, water-proof property and so on. In
bridge construction, u steel sheet pile has gradually played an important role and been popular with engineers. Steel sheet pile
from our factory owns the high-class quality, forging by the advanced technology

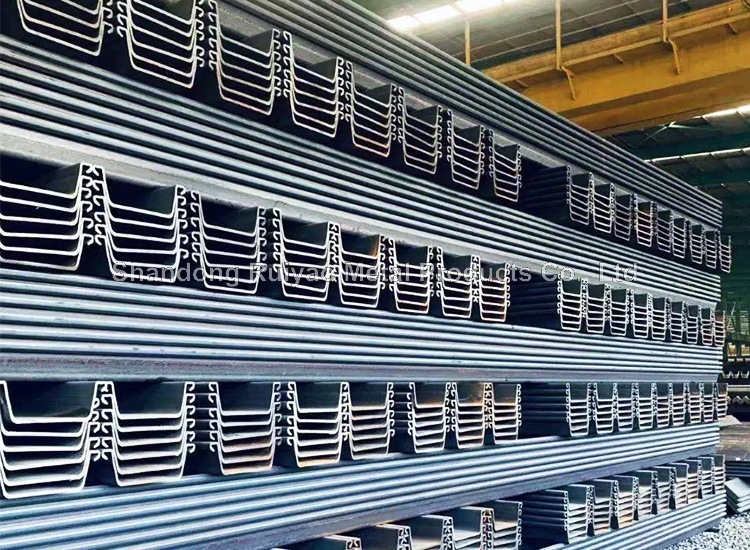

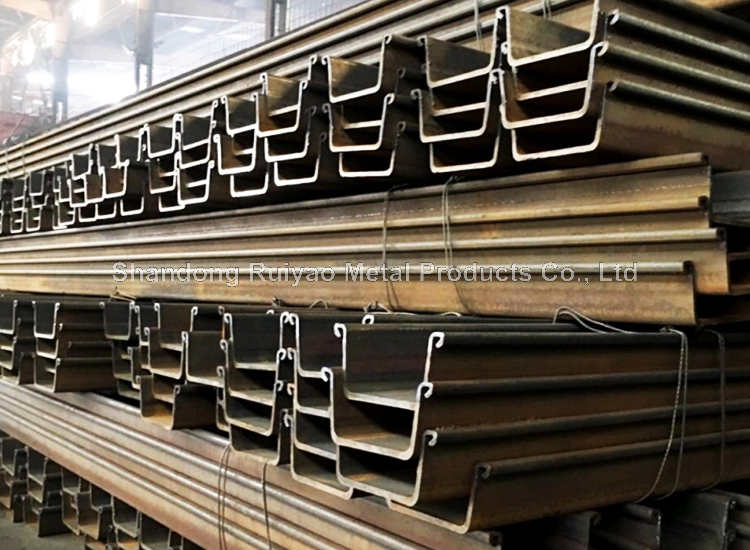

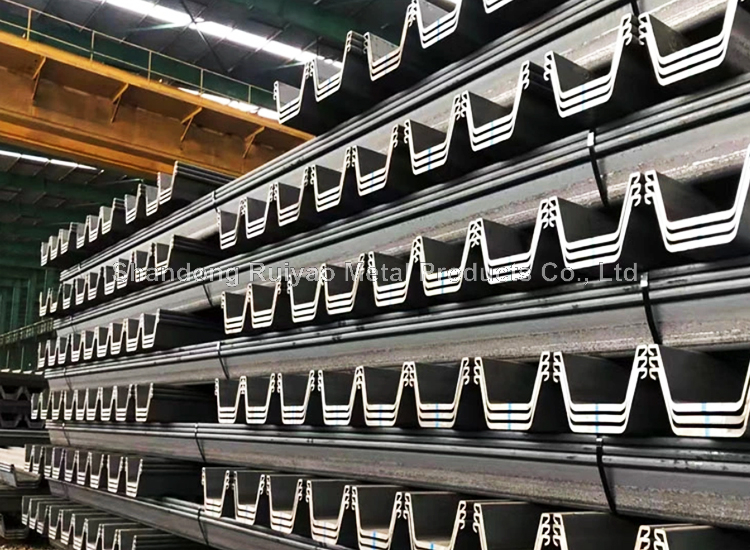

Products Show
